- Delta S Countersurveillance Sweeping System
)
MSRP
$11,990.00 ON SALE
SKU:
Weight:
18.00 LBS
Secure Checkout
Shipping:
Find Similar Products by Category
Vendors Other Products
Product Reviews
Description and Featueres

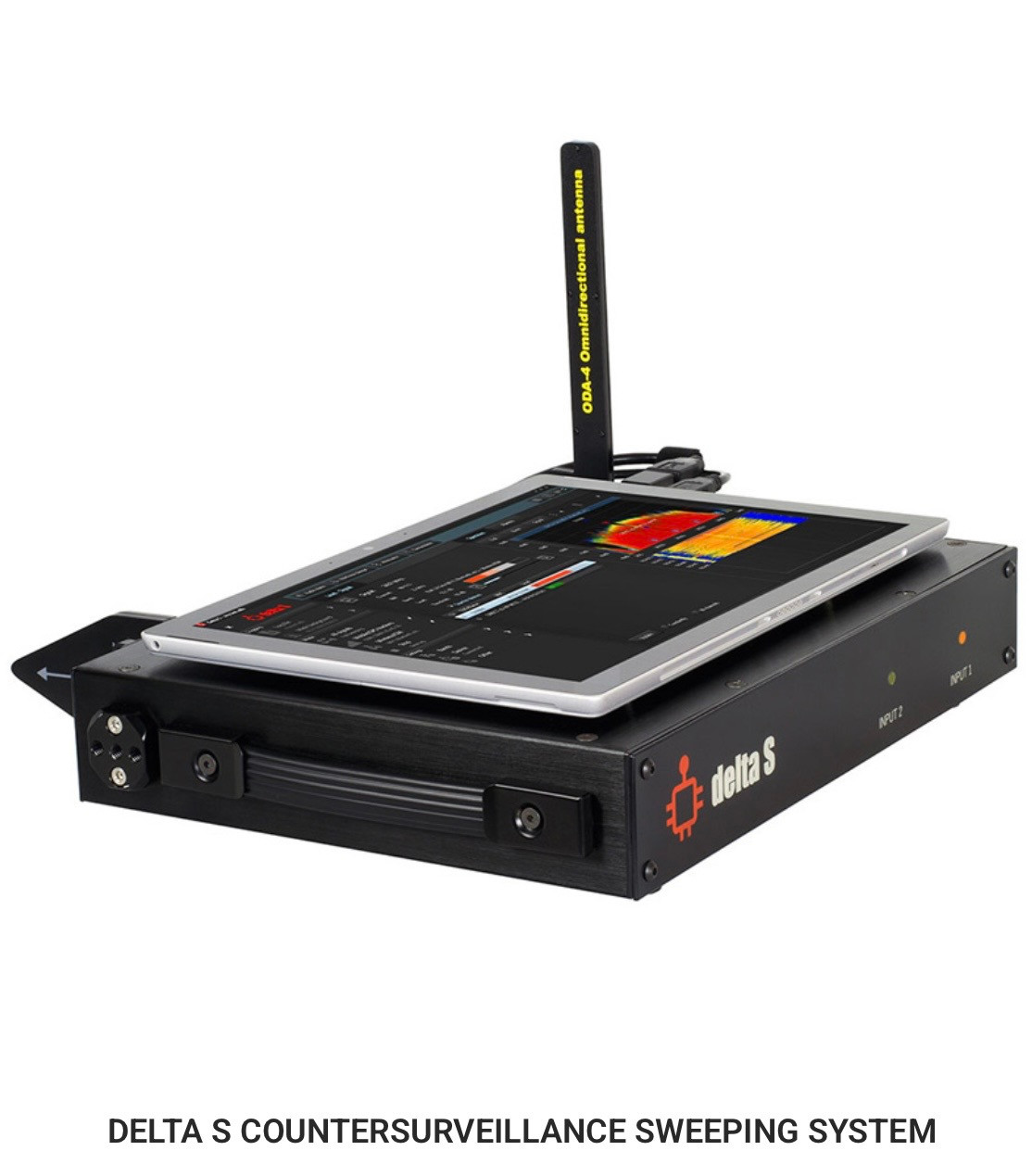

Both Easy to learn and powerful the Delta S is a sweeping system that quickly and reliably detects all types of RF surveillance device up to 6GHz, the spectral analysis provides high sensitivity and a long detection distance of more then 10 to 20 times that of other RF detectors and near-field receivers. Plus the Delta S has a special mode to detect cellular jamming devices.
Description
- Quickly and reliably detects all types of RF surveillance devices in the range up to 6 GHz, including analog, digital, working continuously and periodically, transmitting audio or video, with or without encryption
- Finds and identifies covert surveillance devices which use the digital standards GSM, 3G, 4G / LTE, 5G, Bluetooth, Wi-Fi, DECT and others in the range up to 6 GHz
- Analyzes Wi-Fi 2.4 GHz, Wi-Fi 5 GHz, Bluetooth, “Bluetooth LE” and “Bluetooth LE Advertising” channels
- The background masking feature allows you to reject friendly signals such as television, radio, mobile base stations, etc., and focus on finding local signals that pose a danger
- Can be quickly adjusted to the local frequency allocation in the country of use (mobile and wireless bands)
- High-speed spectrum updating and wide real-time bandwidth (RTBW) provide the ability to register short-burst signals
- Search modes include: "All Signals", "Mobile/GPS trackers", "Wireless/ISM" and "Custom", as well as two additional modes for the inspection of suspicious bands or signals
- Two antenna inputs and built-in antenna switch provide maximum sensitivity over the entire frequency range
- Unlimited number of logs, each can contain an unlimited history of events
- Unlimited number of logs, each can contain an unlimited history of events
- The audio alarm warns the user about the presence of danger with a sound of variable intensity
- The attenuator simplifies location of powerful transmitters
- The "Hold maximum danger" feature automatically displays the most dangerous band or signal
- Demodulation of audio in AM/FM mode
- Works with, and is powered by, a laptop or tablet (not included)
- Has convenient magnetic system for attaching the laptop / tablet to the main unit
Specifications
- Frequency range 57-6000 MHz
- Sweeping speed 8 GHz per second
- ADC resolution 12 bit
- Sensitivity -85 dB
- Dynamic range 80 dB (with attenuator)
- Displayed signal level -90…-10 dB
- Real-time bandwidth (RTBW) 27 MHz
- Format Handheld unit
- Platform SDR by Analog Device
- Antenna inputs INPUT 1 – SMA, 57-2000 MHz INPUT 2 – SMA, 2000-6000MHz
- Searching modes and time of update • All signals (~0.8 s) • Mobile/GPS trackers (~0.2 s) • Wireless/ISM (~0.3 s) • Inspect band/signal (~0.1-0.2 s)
- Visual elements (panels) • Level • Spectrum + Waterfall • Alarms
- Demodulation AM and FM with bandwidth 5, 15, 30, 100 and 200 kHz (in the range 70-6000 MHz)
- Requirements for laptop / tablet Intel Core і3 / AMD Ryzen 3 or better (recommended Intel Core i5 / AMD Ryzen 5) 2 USB ports, one should be of SuperSpeed type (USB 3.0/3.1/3.2 or USB Type C) RAM 8 Gb or more SSD 128 Gb or more Windows 8,10,11. Screen size 12-14”
- Powered by USB-port of laptop / tablet
- Battery resource 1-1.5 hour
- Duration of work from AC Unlimited
- Displayed spectrum span 2 - 6000 MHz
- Range of working temperature -5°C…+45°C / 23°F … 113°F
Signal Detection
- Analog Signals
- Digital Signals
- 3G
- 4G
- 5G
- GPS
- CDMA
- GSM
- Bluetooth
- Wi-Fi
- LTE
Detection Range
- Up to 6 Ghz
Shipping Dimensions
- 20" x 16.5" x 8.25"
Shipping Weight 18 Lbs
Included
- Main unit
- Carry case
- USB drive with software and user manual
- 1- Omni-directed wideband antenna ODA-4
- 1- Microwave antenna MWA-6
- 1- Microwave antenna LPDA-12
- 4 Magnetic sticker for laptop or tablet
- 2 Adapter USB type C – USB type A
